DOOR LEAF STRUCTURE
- rebated system or the DUO non-rebated system
- wooden rail and stile set topped with two flush HDF boards covered with the

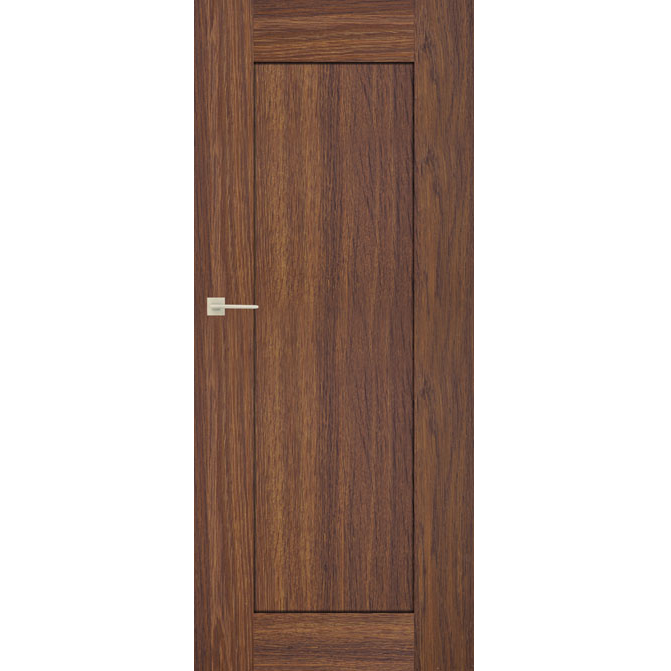

LAMISTONE CPL, SILKSTONE surface - pattern W00, W04: panels with vertical wood grain

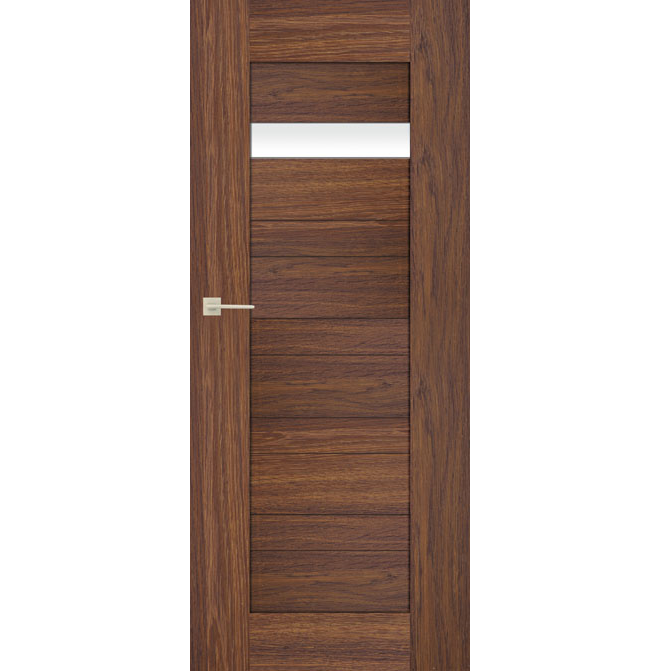

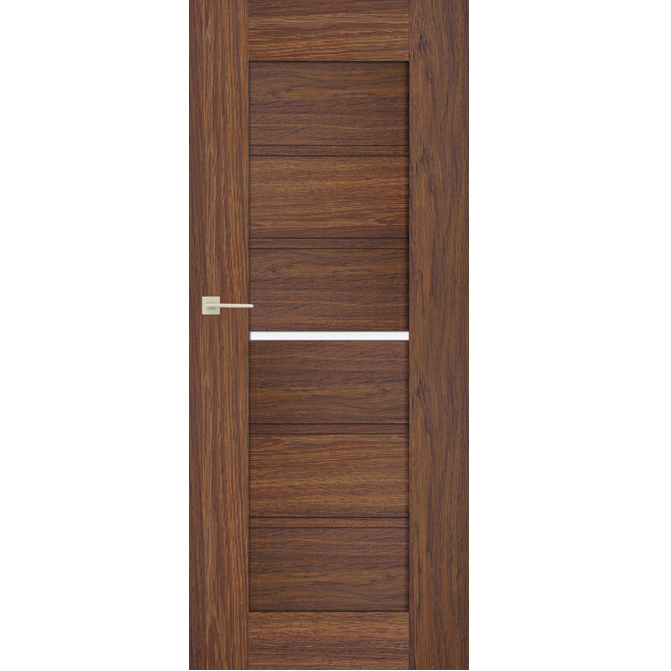

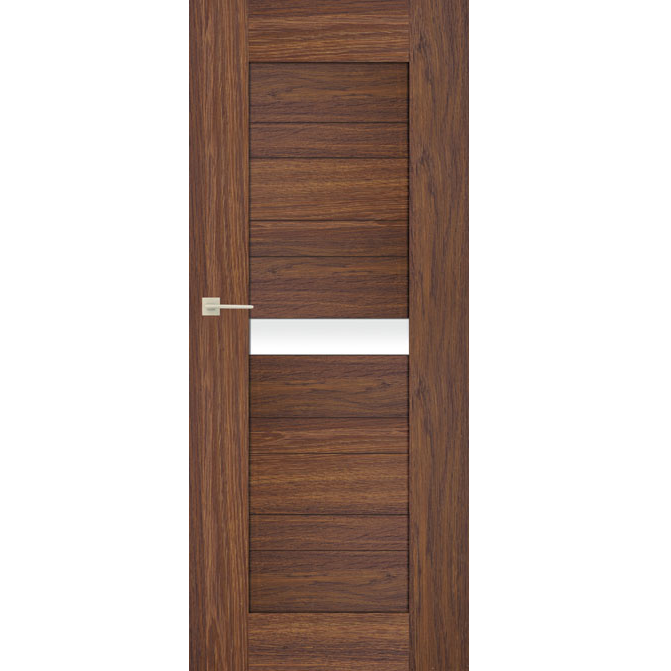

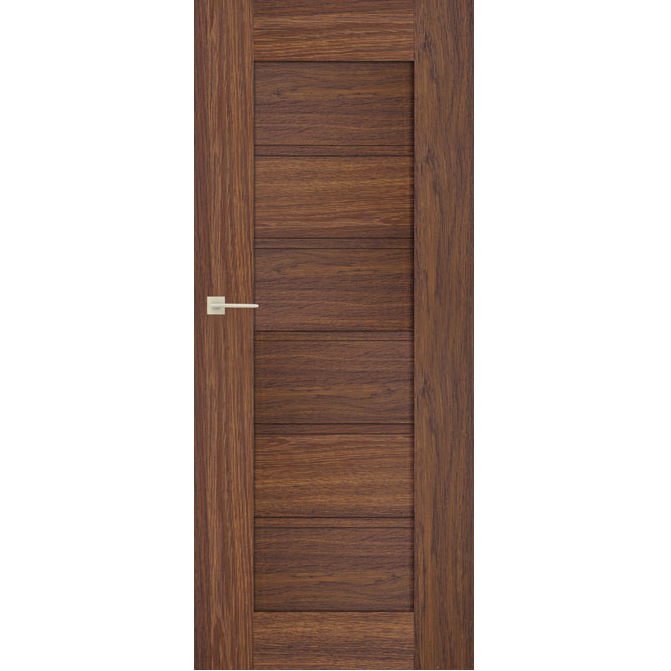

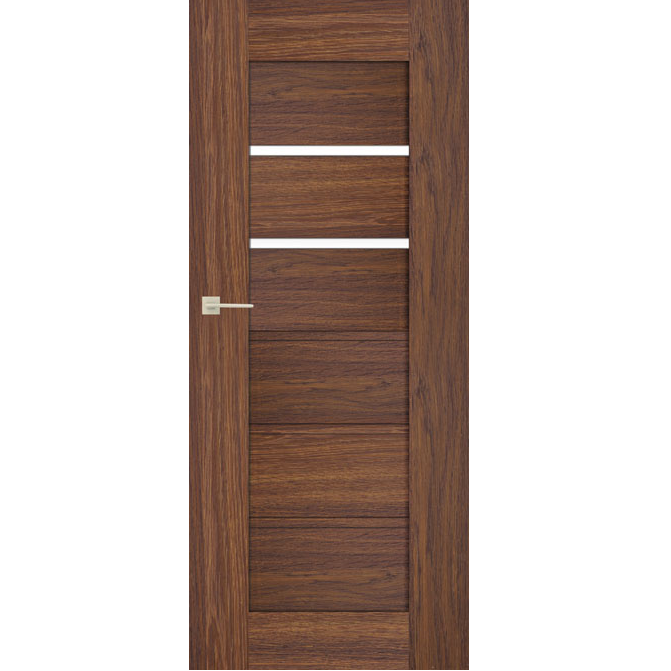

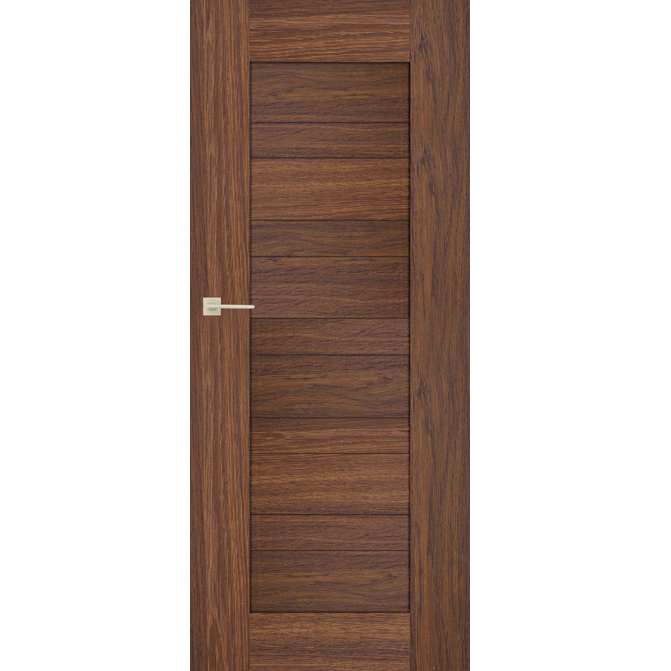

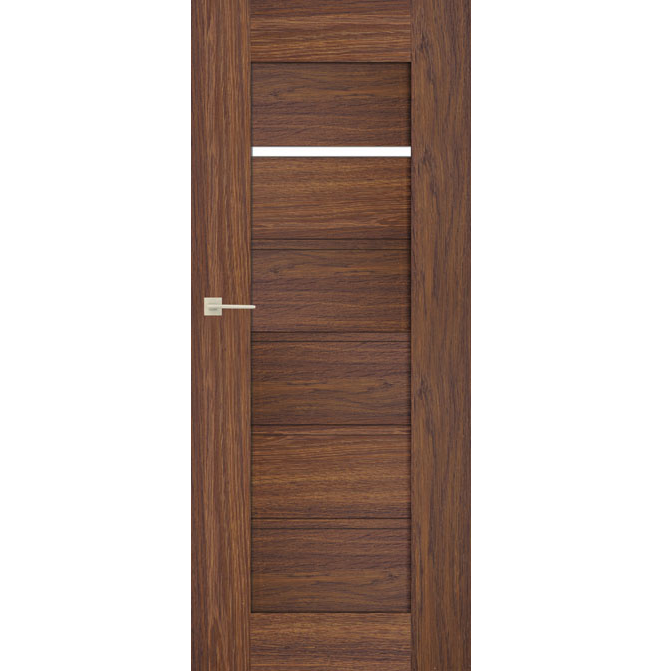

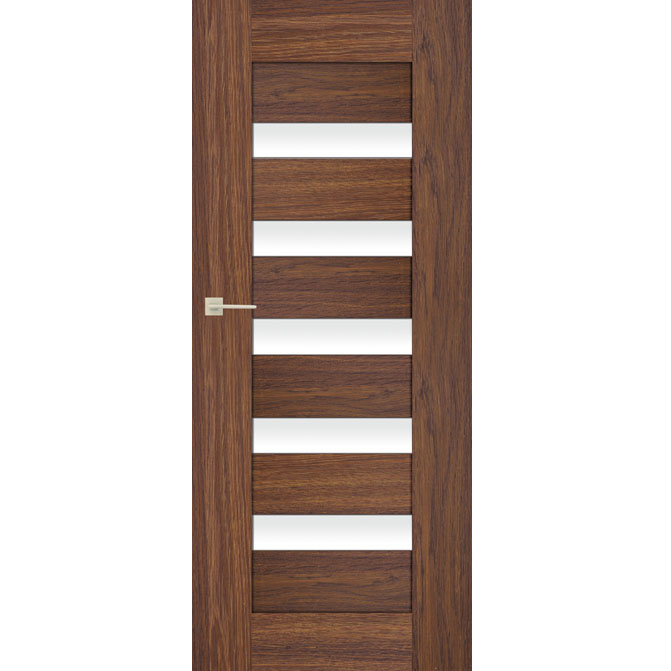

- pattern W02-W02A, W03-W03A: panels with horizontal wood grain

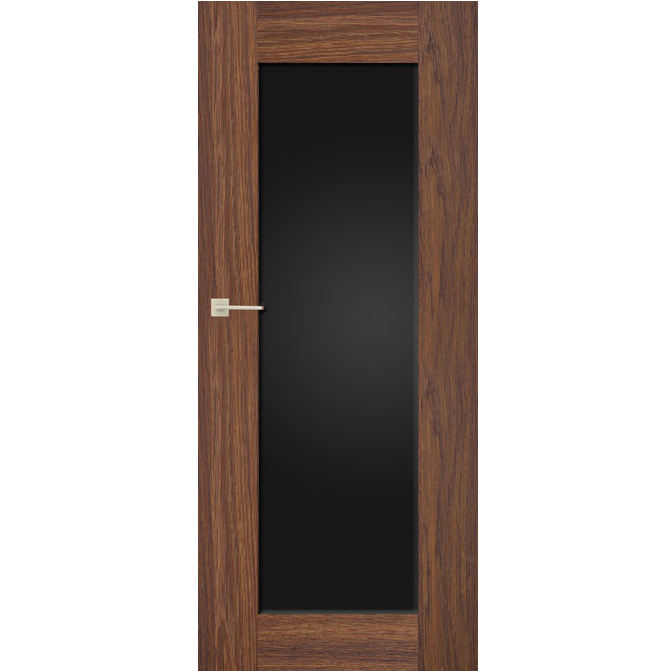

GLAZING
- exchangeable: white matt, brown matt, graphite satin (see the glazing table for details)
| PATTERN / GLASS TYPE |
pattern 04 – 6 mm thick | ||

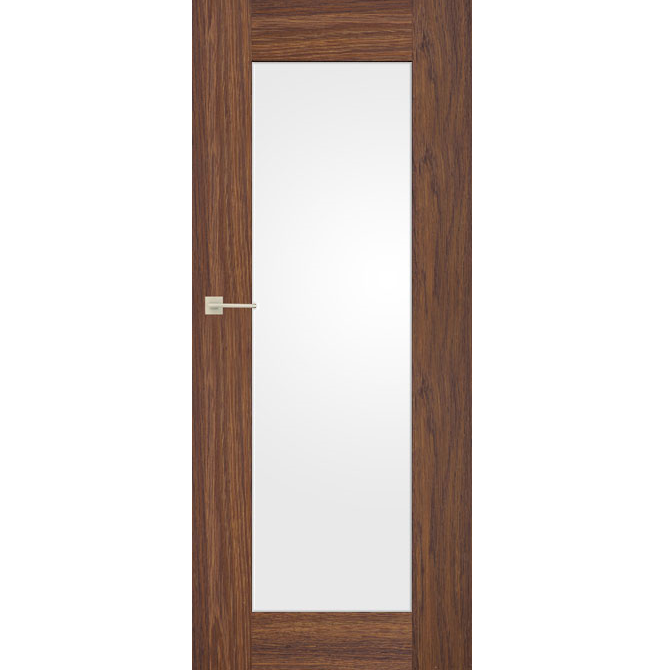

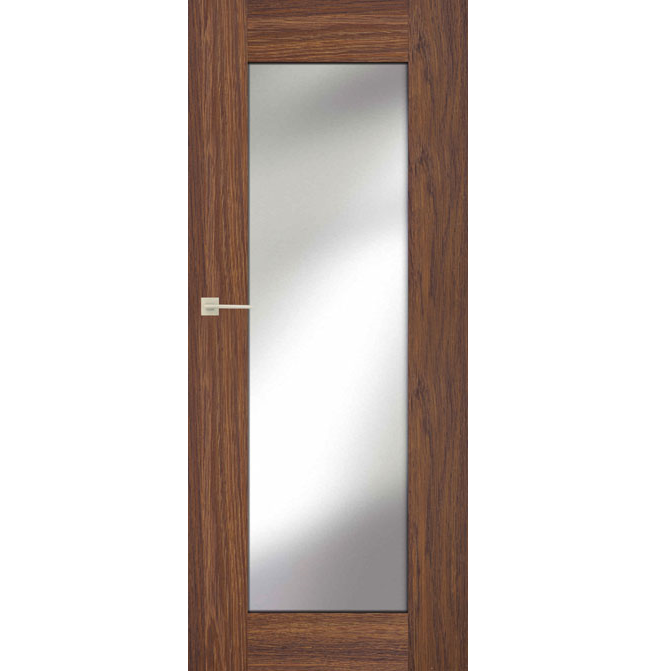

| pattern W01; W05 – tempered glass, 4 mm thick | |||

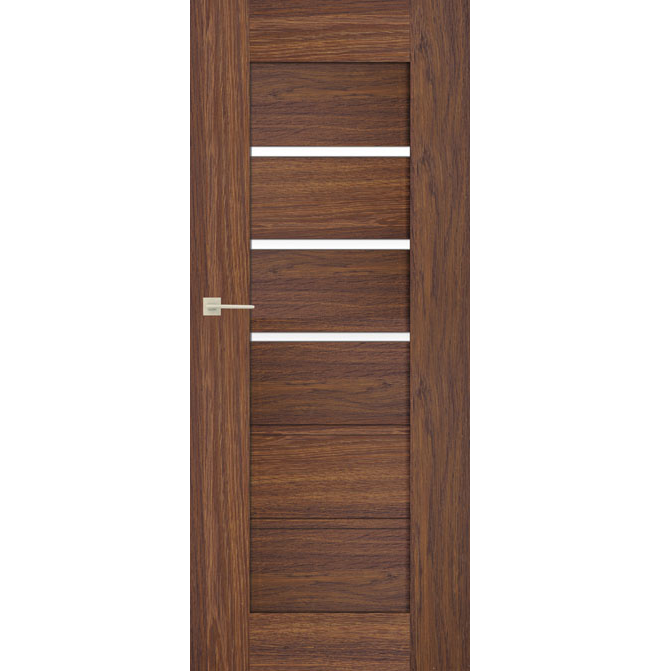

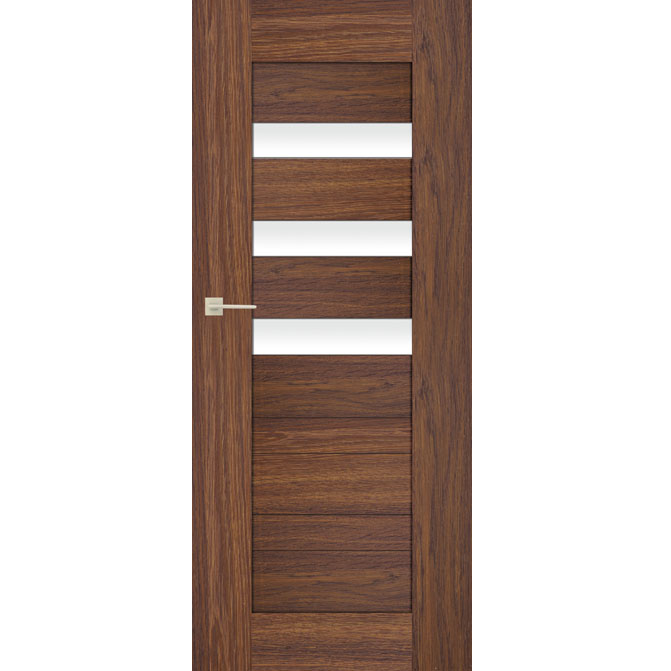

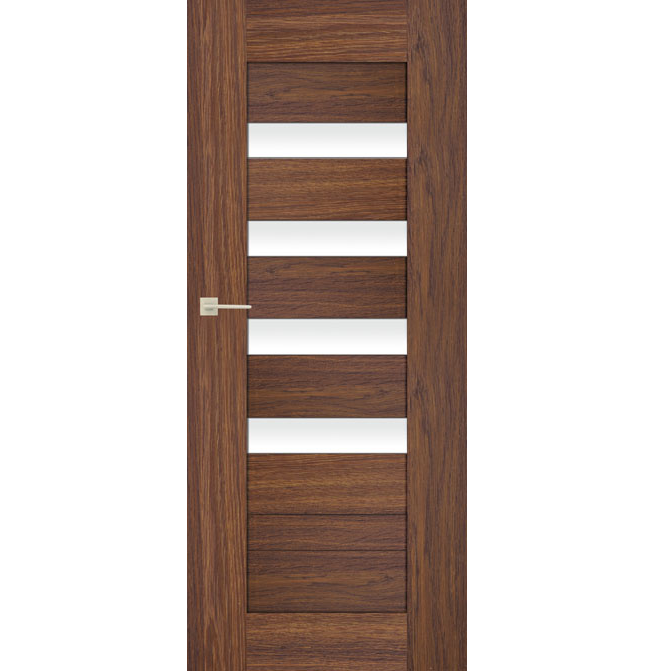

| pattern W02-W02A; W03-W03A – 4 mm thick | |||
| COLOURS | white matt | brown matt | graphite satin |
| 258, 260, 276, 284, 288, 294, 296 | X | ||
| 263, 265, 279, 292, 295, 297 | X | ||
| 293 | X | ||
STANDARD EQUIPMENT
REBATED SYSTEM
- single-point mortise lock, spacing: 72 mm, key-operated (WK), for cylinder (WB) or for bathroom lock (WC)
- hinges: screw-in pivot type (“60”, “70”, “80” – 2 units; “90” – 3 units)
NON-REBATED SYSTEM
- magnetic mortise lock (colour: chrome – satin), key-operated WK, for bathroom lock WC – spacing: 90 mm; for cylinder WB – spacing: 85 mm
- hidden non-rebated hinges (DUO non-rebated system) (“60”, “70”, “80”, “90” – 2 units)
DOOR LEAF DIMENSIONS
- the single leaf type: “60”; “70”; “80”; “90”
- the double leaf type: “60”+“60”; “60”+“70”; “60”+“80”; “60”+“90”; “70”+“70”; “70”+“80”; “70”+“90”; “80”+“80”; “80”+“90”; “90”+“90”
